KRAMER Extender HDMI HDR Tx/Rx 1xFiberLC 4K@60 Max 200 m EDID
You have to log in to shop/see prices.
|
|
KRAMER Extender HDMI HDR Tx/Rx 1xFiberLC 4K@60 Max 200 m EDID
-
Type
Video Extender / Receiver
|
Description
Specifications

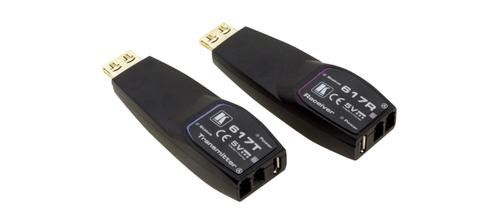

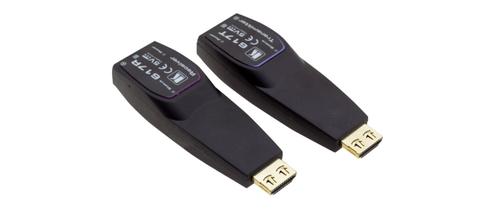

617R/T is a compact fiber optic transmitter and receiver capable of extending HDMI 2.0 signals over fiber optic cable. This set of extenders supports 4K@60 (4:4:4) resolution up to 656 feet (200 meters) on a dual LC multi−mode fiber cable.
- Max. Resolution — 4K@60(4:4:4)
- Max. Data Rate — 18Gbps
- HDMI Support — HDCP 2.2, EDID and CEC
- High Quality Connectors — 24K gold–plated and corrosion–resistant for the best possible connectivity
- K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection
- Max. Extension — 656ft (200m) over dual LC multi–mode OM3 fiber optic cable
- Compact Design — For easy plug and play installation
- Pure fiber connectivity for secure applications
Egenskaper |
|---|
| Modell/Type | AV-sender og -mottaker |
| Maksimal oppløsning | 4096 x 2160 piksler |
| Maksimal overføring avstand | 200 m |
| Fiberoptisk kontakt | LC |
| Fibermodusstruktur | Multi-modus |
| Extended display identification data (EDID) | Yes |
| Største båndbredde for port | 6 Gbit/s |
| HDCP | Yes |
| Consumer Electronics Control støtte (CEC) | Yes |
| HDCP-versjon | 2.2 |
| Produktfarge | Svart |
| RoHS-overholdelse | Yes |
| ISV-sertifiseringer | CE: EN 55032:2012/AC: 2013 (A), EN 61000–3–2:2014, EN 61000–3–3:2013, EN 55024:2010
FCC: CFR 47 15 SUBPART B B, 15.101 |
Tilkoblingsevne |
|---|
| Tilkoblingsteknologi | Koblet med ledninger (ikke trådløs) |
| HDMI-versjon | 2.0 |
| Antall USB-porter | 2 |
| USB-tilkobler | Micro-USB |
Energihåndtering |
|---|
| Driftsspenning | 5 V |
| Strømforbruk | 2,5 W |
Miljømessige forhold |
|---|
| Driftstemperaturområde | 0 - 50 °C |
| Oppbevaringstemperaturomåde (Celsius) | -30 - 70 °C |
| Luftfuktighetsområde ved drift | 0 - 85% |
Vekt og dimensjoner |
|---|
| Bredde | 26 mm |
| Dybde | 72 mm |
| Høyde | 15 mm |
| Vekt | 120 g |
Datainnpakking |
|---|
| Pakkebredde | 193 mm |
| Pakkedybde | 253 mm |
| Pakkehøyde | 620 mm |
| Pakningsvekt | 1,48 kg |
Emballasjeinnhold |
|---|
| AC-adapter bunt | Yes |
| Kabler inkludert | USB |
