LinkIT Fiberpatch armored OS2 LC/LC 500m Braided steel | Duplex | LSZH | Blue
You have to log in to shop/see prices.
|
|
LinkIT Fiberpatch armored OS2 LC/LC 500m Braided steel | Duplex | LSZH | Blue
|
Description
Specifications
Fiberpatch armert OS2 LC/LC 500 m
ARMOS2LL-5000M
Specifications:

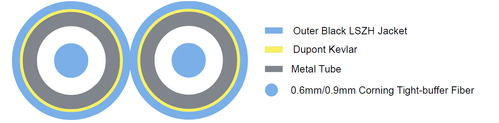

- Flettet, fleksibel stålkappe og stålfolie for beste beskyttelse
- Leveres på papptrommel
- 2 x 3 mm ytre diameter
- Bending radius 10D mm static
- Tensile short 400N, Long 200N
- OS2 9/125 for 10Gb
- Operativ temp: -40°C to +90°C
- Blå farge på kabel og kontakter
| Merke | LinkIT |
| Farge | Blue |
| Lengde (m) | 500 |
| Kategori | OS2 |
| Kontakt type 1 | LC |
| Kontakt type 2 | LC |
| Poleringsgrad kontakt 1 | UPC |
| Poleringsgrad kontakt 2 | UPC |
| Kabeltype | Duplex |
| Antall fiber | 2 |
| Core Diameter (um) | 9/125 |
| Overføringshastighet | 10Gbps |
| Ytterkappe | LSZH |
| Bøyavlaster | Moulded |
| Optical Return Loss (dB) | <= 0.3 dB |
| Driftstemperatur | -40°C til +90°C |
| Kabeldiameter (mm) | 3 |
| Halogenfri | Yes |
| Godkjenninger | CE,RoHS |
| Grunnenhet | C62 |
| EAN | 7072262021287 |
| Tolltariffnummer | 85447000 |
| Tolltariffnummer EU | 85447000 |
| Opprinnelsesland | CN |
| Lagerstatus | Normalt skaffevare |
| Enhet | C62 |
