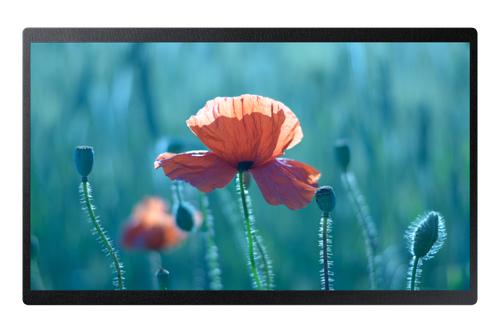

SAMSUNG 24" FullHD 16:9 QB24R 250 nits

QB24R

• 24” FHD, non-glare display delivers clear content
• Compact and slim design enables efficient use of space
• Embedded MagicINFO S player supports seamless content playback

• Panel
• Diagonal Size 24
• Type ADS
• Resolution 1920*1080 (Full HD)
• Pixel Pitch(mm) 0.2745 x 0.2745
• Active Display Area(mm) 527.04 (H) x 296.46 (V)
• Brightness(Typ.) 250 nit
• Contrast Ratio 1000:1
• Viewing Angle(H/V) 178/178
• Response Time(G-to-G) 14ms(Typ.)
• Display Colors 16.7 M (real 6bit, dither 8bit)
• Color Gamut 72%
• Operation Hour 16/7
• Haze 25%
• Display
• Dynamic C/R MEGA
• H-Scanning Frequency 56 ~ 84.5kHz
• V-Scanning Frequency 48 ~ 75HZ
• Maximum Pixel Frequency 594MHz
• Sound
• Speaker Type Built in Speaker(5W)
• Connectivity
• Input
• RGB -0
• Video HDMI 1.4 (1)
• HDCP HDCP 2.2
• USB USB 2.0 x 1
• Output
• Audio Stereo Mini Jack
• External Control RS232C(in) thru stereo jack, RJ45
• Power
• Type Internal
• Power Supply AC 100 - 240 V, 50/60 Hz
• Power Consumption
• Max[W/h] 38.5
• Typical[W/h] 25.0
• Rating[W/h] 35.0
• BTU(Max) 131.3
• Sleep mode 0.5
• Mechanical Specification
• Dimension (mm)
• Set 547.9 x 334.4 x 31.8
• Package 620 x 419 x 122
• Weight (kg)
• Set 3.0
• Package 4.1
• VESA Mount (mm) 100 X 100
• Bezel Width (mm) 17.9mm(U/B), 9.4mm(L/R)
• Operation
• Operating Temperature 0 ℃ ~ 40 ℃ Humidity 10 % ~ 80.0 %
• Feature
• Key Features Small Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
• Orientation N/A
• Remote Control N/A
• Special Features H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(5W 1ch), IP5x Rating, Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
• Internal Player Processor Cortex A72 1.7GHz Quad-Core CPU
• On-Chip Cache Memory L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
• Clock Speed 1.7GHz
• Main Memory Interface 2.5GB LPDDR4 1.5GHz 64bit
• Graphics Graphic resolution : 1920x1080 Output resolution : 1920x1080 (Scale up from graphic processing result.)
• Storage (FDM) 8GB (3.88GB Occupied by O/S, 4.12GB Available)
• Multimedia *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
• IO Ports USB 2.0
• Operating System Tizen 4.0 (VDLinux)
• Certification
• Safety 60950-1
• EMC Class B
• Security 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP
• Accessory
• Included Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
• Optional
• Stand -0
• Mount -0
• Specialty -0
• Media Player
• Media Player N/A
