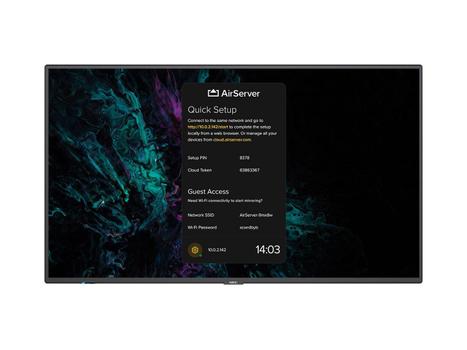

Sharp / NEC M431 AirServer | 43"" | 3840x2160 | 500Nits | 24/7 | Built-in speaker |

NEC MultiSync® M431 AirServer LCD 43" Midrange Large Format Display (incl. AirServer® Embedded Screen Mirroring Solution)

• Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
• Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
• Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
• Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
• Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.

• DISPLAY
• Panel Technology IPS with Edge LED backlights
• Screen Size [inch/cm] 43 / 108
• Aspect Ratio 16:9
• Brightness [cd/m²] 500
• Contrast Ratio ≥ 8000:1 1
• Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
• Colour Depth [bn] 1.076 (10bit)
• Response Time (typ.) [ms] 8
• Panel Refresh Rate [Hz] 60
• Haze Level [%] Pro (28)
• Supported Orientation Landscape; Portrait
• SYNCHRONISATION RATE
• Horizontal Frequency [kHz] 26 - 91.1
• Vertical Frequency [Hz] 23 - 86
• RESOLUTION
• Native Resolution
• 3840 x 2160
• Supported Resolutions
• 1024 x 768;
• 1280 x 1024;
• 1280 x 720;
• 1360 x 768;
• 1366 x 768;
• 1400 x 1050;
• 1440 x 900;
• 1600 x 1200;
• 1650 x 1050;
• 1920 x 1080;
• 1920 x 1200;
• 1920 x 2160;
• 2560 x 1440;
• 2560 x 1600;
• 3840 x 2160;
• 4096 x 2160
• CONNECTIVITY
• Input Video Digital 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
• Input Audio Digital 1 x DisplayPort; 2 x HDMI
• Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
• Input Data 1 x USB 2.0 (MediaPlayer)
• Output Audio Analogue 1 x 3,5 mm jack
• Input Detect Custom; First; Last
• OPEN MODULAR INTELLIGENCE
• Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 45 W; compatible with Intel Celeron CPUs or CPUs with lower power consumption
• Compute Module Slot RPi Compute Module 4
• AIRSERVER EMBEDDED SCREEN MIRRORING SOLUTION
• AirPlay code and password; extend macOS display; iOS, iPadOS and macOS; screen mirroring and content sharing
• Google Cast Android, Chrome OS and Google Chrome; prompt security; screen mirroring and cast from apps with DRM
• Miracast Android and Windows; extend Windows 10 desktop; Miracast over infrastructure; screen mirroring; touchback and pen support
• Guest Connectivity 2.4 and 5 GHz channel selection; access control (device only, Internet only or Internet/LAN; Wi-Fi Hotspot; WPA2 security
• Video Output up to Full HD (1920 x 1080) at 60 fps
• No. of Connections 1
• Networking 1 x Gigabit LAN; 802.11 ac/b/g/n Wi-Fi; 802.1X security; IPv6 adresses; Proxy
• Automatic Updates provides new features and security enhancements
• SENSORS
• Ambient Light Sensor Integrated, triggered actions programmable
• Temperature Sensor Integrated, 3 sensors, triggered actions programmable
• ELECTRICAL
• Power Consumption Eco/max. [W] 80 shipping
• Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
• Power Management VESA DPMS
• Power Supply 100-240 V AC; 50/60 Hz; internal
• ENVIRONMENTAL CONDITIONS
• Operating Temperature [°C] +0 to +40
• Operating Humidity [%] 20 to 80
• Storage Humidity [%] 10 to 90
• Storage Temperature [°C] -20 to 60
• MECHANICAL
• Dimensions (W x H x D) [mm] 968.2 x 561 x 67.1
• Weight [kg] 17.8
• Bezel Width [mm] 11 (left, right and top); 15.6 (bottom)
• VESA Mounting [mm] 300 x 300 (FDMI); 4 holes; M6
• Ingress Protection IP5x (front); IP2x (back)
• Packaging Dimensions (W x H x D) [mm] 1,120 x 700 x 203
• Packaging Weight [kg] 23
• Colour Bezel Pantone 426M (black)
• Material Metal
• MEDIAPLAYER
• Supported File Storage / File System USB 2.0 / FAT16, FAT32
• Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
• Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
• Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s
• AVAILABLE OPTIONS
• Accessories Feet (ST-43M); Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P)
• GREEN FEATURES
• Energy Efficiency Energy consumption: 68 kWh/1000 h; Energy efficiency class: G; LED backlight
• Ecological Standards EnergyStar 8.0
• ADDITIONAL FEATURES
• Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
• Safety and Ergonomics BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
• Pixel Failure Class ISO 9241-307, Class 1
• Audio Integrated Speakers (10 W + 10 W)
• Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
• Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
• Operating Hours 24/7
• External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
• Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
• Security Disable HW Buttons; Disable IR Functionality; Emergency Notification
• Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB
